BMW BRONZE CLUTCH AND BRAKE PEDAL BUSHINGS

OVERVIEW

Got a loose or noisy clutch pedal arm driving you crazy? Sloppy? Side-to-side play? Pedal sits at an angle? Well, it's pretty common in aging BMWs! The original E30, E36, and E46 brake arm bushings have been pushed thousands of times and more often than not are showing their age. You can lubricate them to kill the noise, but that's only a temporary fix for the noise and doesn't fix the play. As we often say, "Do it once, do it right".

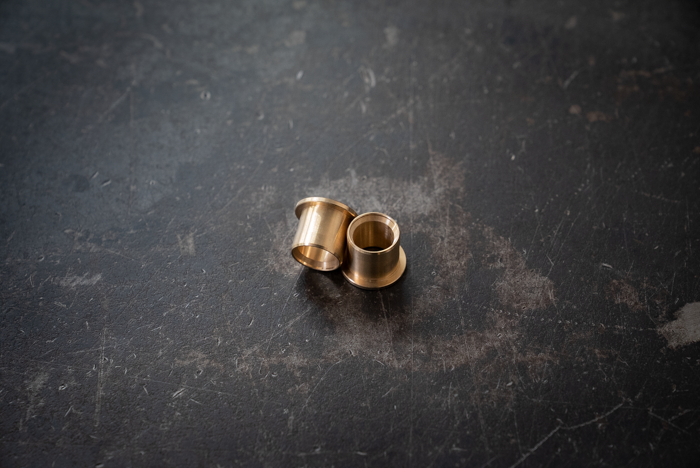

No one wants to crawl under a dash more than they have to! Using our bronze clutch pedal bushings as a replacement for the stock bushings means you will never need to replace them again, this is a permanent fix! This brass clutch pedal bushings unit is ideal for the clutch pedal, save the Delrin for the brakes. The reason for this is that the clutch pedal usually sees more use (rotational-wise) making the brass a more appropriate material. However, for those wanting to go truly hardcore, these pedal bushings can be used for both the brake and clutch.

FITMENT

WHAT MODEL BMWS WILL THESE BRONZE PEDAL BUSHINGS WORK ON?

• Fits most 1989-2005 3-series (E30, E36, E46)
• Fits all 1989-2006 5-series (E34, E39, E60)
• Fits all Z3, Z4 models
• Fits many other manual-transmission BMW models built since 1989 (See complete chassis fitment list below!)

Replaces: OEM BMW Part Numbers: 35211158290,35316797357, 35006878303

• E30: Manual, Late models ONLY (89+)
• Note: Does not fit early model E30 PEDALS
• 1' E81   (02/2006 — 12/2011)
• 1' E87   (02/2003 — 02/2007)
• 1' E87 LCI   (01/2006 — 06/2011)
• 1' E88   (11/2006 — 10/2013)
• 1' E82   (11/2006 — 10/2013)
• 1' F20   (07/2010 — 02/2015)
• 1' F20 LCI   (05/2014 — 06/2019)
• 1' F21   (07/2010 — 02/2015)
• 1' F21 LCI   (05/2014 — 06/2019)
• 2' F22   (10/2012 — 06/2017)
• 2' F22 LCI   (09/2016 — 12/2019)
• 2' F87 M2   (11/2014 — 06/2017)
• 2' F87 M2 LCI   (09/2016 — 12/2019)
• 2' F23   (03/2014 — 06/2017)
• 2' F23 LCI   (09/2016 — 12/2019)
• 3' E30   (12/1981 — 02/1994)
• 3' E36   (11/1989 — 08/2000)
• 3' E46   (04/1997 — 12/2018)
• 3' E90   (02/2004 — 09/2008)
• 3' E90 LCI   (07/2007 — 02/2012)
• 3' E91   (02/2004 — 08/2008)
• 3' E91 LCI   (07/2007 — 05/2012)
• 3' E92   (05/2005 — 02/2010)
• 3' E92 LCI   (11/2008 — 06/2013)
• 3' E93   (09/2005 — 02/2010)
• 3' E93 LCI   (11/2008 — 10/2013)
• 3' F30   (03/2011 — 07/2015)
• 3' F30 LCI   (09/2014 — 10/2018)
• 3' F80 M3   (04/2012 — 06/2015)
• 3' F80 M3 LCI   (01/2015 — 10/2018)
• 3' F31   (07/2011 — 07/2015)
• 3' F31 LCI   (09/2014 — 06/2019)
• 3' F34 GT   (07/2012 — 06/2016)
• 3' F34 GT LCI   (09/2015 — 01/2020)
• 4' F32   (11/2012 — 02/2017)
• 4' F32 LCI   (05/2016 — 12/2019)
• 4' F82 M4   (02/2013 — 02/2017)
• 4' F82 M4 LCI   (05/2016 — 12/2019)
• 4' F33   (03/2013 — 02/2017)
• 4' F33 LCI   (05/2016 — 12/2019)
• 4' F83 M4   (06/2013 — 02/2017)
• 4' F83 M4 LCI   (05/2016 — 11/2019)
• 4' F36 Gran Coupé   (07/2013 — 03/2017)
• 4' F36 Gran Coupé LCI   (05/2016 — 12/2019)
• 5' E34   (03/1987 — 12/1996)
• 5' E39   (02/1995 — 12/2003)
• 5' E60   (12/2001 — 12/2009)
• 5' E60 LCI   (10/2005 — 12/2009)
• 5' E61   (10/2002 — 02/2007)
• 5' E61 LCI   (11/2005 — 05/2010)
• 6' E24   (09/1977 — 04/1989)
• 6' E63   (05/2002 — 07/2010)
• 6' E63 LCI   (04/2006 — 07/2010)
• 6' E64   (09/2002 — 07/2010)
• 6' E64 LCI   (04/2006 — 07/2010)
• 7' E32   (10/1985 — 04/1994)
• 7' E38   (07/1993 — 07/2001)
• 8' E31   (07/1989 — 05/1999)
• X1 E84   (09/2008 — 06/2015)
• X3 E83   (01/2003 — 07/2006)
• X3 E83 LCI   (02/2006 — 08/2010)
• X5 E53   (10/1998 — 09/2006)

• Z1 Roadster   (07/1988 — 06/1991)

• Z3 E36   (12/1994 — 06/2002)
• Z4 E85   (01/2002 — 08/2008)Z4 E86   (10/2005 — 08/2008)
• Z4 E89   (01/2008 — 08/2016)
• Z8 E52   (12/1998 — 07/2003)
• MINI R50   (09/2000 — 11/2006)
• MINI R53   (09/2000 — 11/2006)
• MINI R56   (10/2005 — 08/2010)
• MINI R56 LCI   (03/2009 — 11/2013)
• MINI Clubman R55   (10/2006 — 07/2010)
• MINI Clubman R55 LCI   (03/2009 — 06/2014)
• MINI Cabrio R52   (11/2002 — 07/2008)
• MINI Cabrio R57   (10/2007 — 07/2010)
• MINI Cabrio R57 LCI   (06/2009 — 06/2015)
• MINI Coupé R58   (12/2010 — 05/2015)
• MINI Roadster R59   (01/2011 — 04/2015)
• BMW Classic Motorsport   (01/1928 — 09/1932)

INCLUDED

• Comes with 1 pair of bushings (enough to do 1 pedal)
• You will need to purchase 2 pairs to do both clutch and brake pedals

Note: Ideal for clutch use but may be used with both clutch and brake pedals.
